1206(0.126x0.063x0.0256mm) 63Vdc/32Vdc 250mA-30A _surface mount fuse

1206(0.126x0.063x0.0256mm) 63Vdc/32Vdc 250mA-30A

Description

The 1206 Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses.

Catalog Symbol	Size	Rated Voltage(V)		Ampere Range	Agency	Dimensions (LxWxH mm)	Material	Class of operation
Catalog Symbol	Size	AC	DC	Ampere Range	Agency	Dimensions (LxWxH mm)	Material	Class of operation
12.000	1206	/	125/72/63/32	1A~30A	JDYX2.E365879	3.21.60.65mm	Body: Ceramic Terminal: Silver over-plated with tin	FAST ACTING
12.100	1206	/	125/72/63/32	250mA~30A	JDYX2.E365879	3.21.60.65mm	Body: Ceramic Terminal: Silver over-plated with tin	SLOW BLOW

Applications

Secondary circuit protection; Laptop, notebook, netbook; Flat panel displays; High-definition television (HDTV); LCD/LED backlighting; Computers and peripherals; Automotive; Central body control module; Heating ventilation and air conditioning; Doors, window lift and seat control; Digital instrument cluster; In-vehicle infotainment and navigation; Electric pumps, motor control and powertrain control; Module(PCU)/Engine; Gaming console systems; Handheld/portable equipment; Mobile device charges.

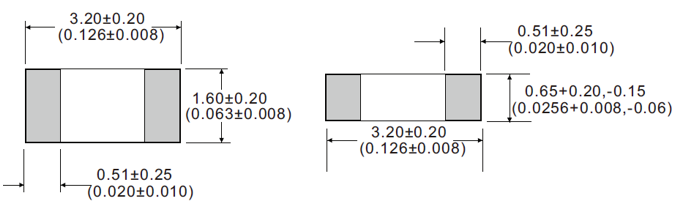

Dimensions(mm)
